E-TYPES Technology: porcelain metallization and soldering
Creepage distances: from 470 to 1000 mm.
Impulse Voltages: from 125 to 250 kVBIL
Rated Voltages: from 12 to 36 Kv

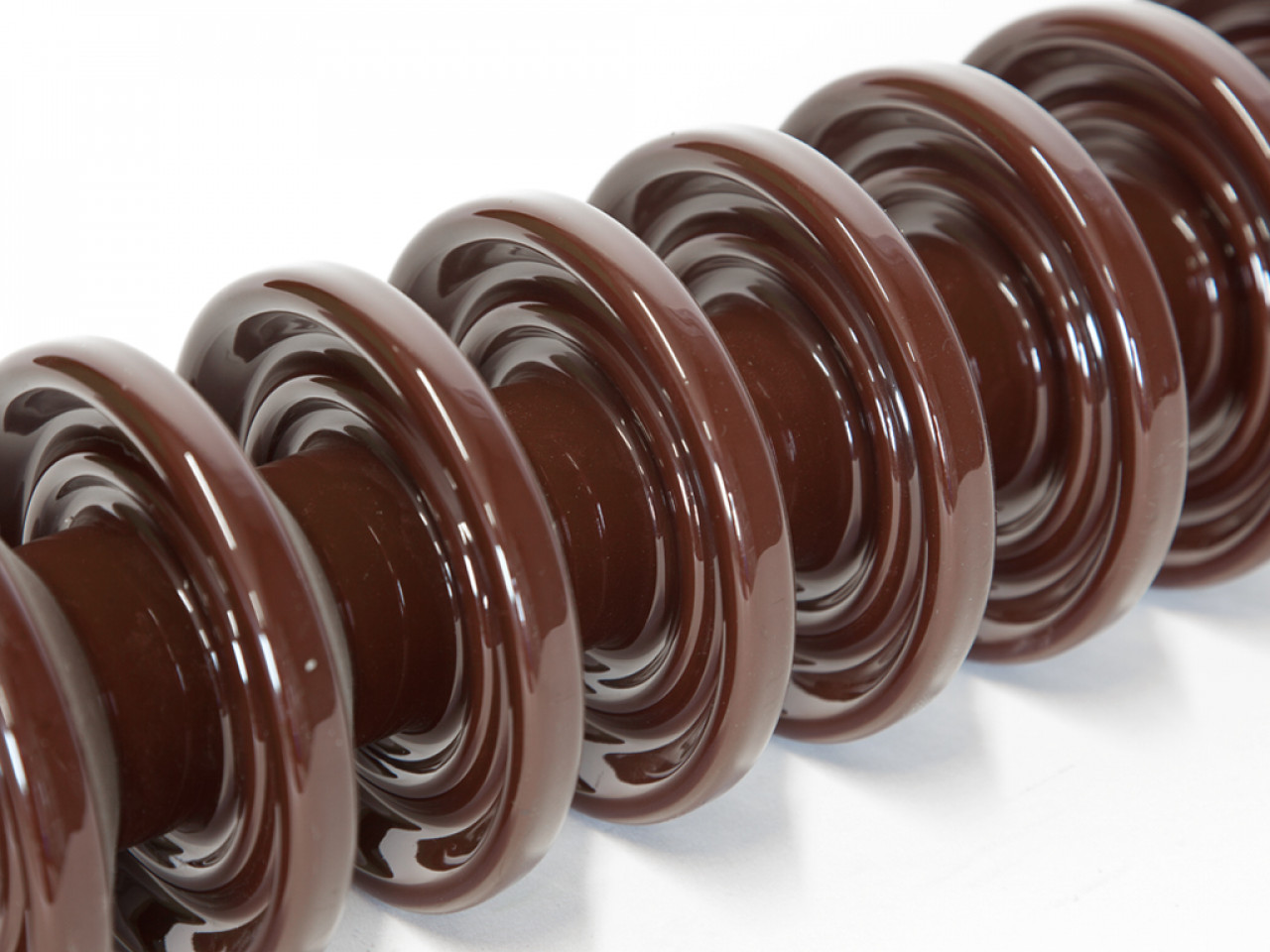

Angled sheds with double antidrop for vertical installation
For outdoor/indoor
Brown colour
  Electrical ratings Dimensional ratings
Type N. of skirts Rated voltage (KV) Impulse voltage (KV Bil) Dry- Withstand (KV) Wet- Withstand (KV) Total creepage (mm.) Air-distance (mm.) Max height (mm.) Max diameter (mm.)
E2 4 24 125 70 50 470 230 262 120
E3 5 36 170 80 70 570 275 315 120
E4 6 36 200 95 80 700 320 357 120
E6 8 48 250 140 95 1000 370 447 120

Available variants and materials:
Flange for soldering in fire tinned brass or steel, diameter 85 mm.
Flange for TIG/MIG welding in stainless steel, diameter 102 mm.
Thread in tinned brass from M6 to M16 - including ½’’-13th
Stud with bore several diameters
Solid stud with wire already connected
Wire sections: 5 – 10 – 12 – 16 – 25 mm²

Tests performed:
Leak test at 6 bars on 100%
Visual inspection on 100%
Dimension test on sample quantity
Temperature test at 130°C on sample quantity
Cantilever load test from 250N until 750 N  – Type test
Traction (tensile) load test at 1500N – Type test
Torque test at 45Nm – Type test

Note to the Purchaser:

All information provided in this website, including technical specifications and recommendations, is based on the results of tests carried out. However, no guarantee is provided with regard to the fact that information supplied is also entirely accurate and complete. It is in the Purchaser’s interest to verify product compatibility with the use intended. All products sold by Zamber are compliant with Zamber’s in-house standards. Zamber is not liable for any possible after sale damage
