S-TYPES Technology: porcelain metallization and soldering
Creepage distances: from 246 to 660 mm.
Impulse Voltages: from 75 to 150 kVBIL
Rated Voltages: from 12 to 24 Kv

Angled sheds
For outdoor/indoor installation

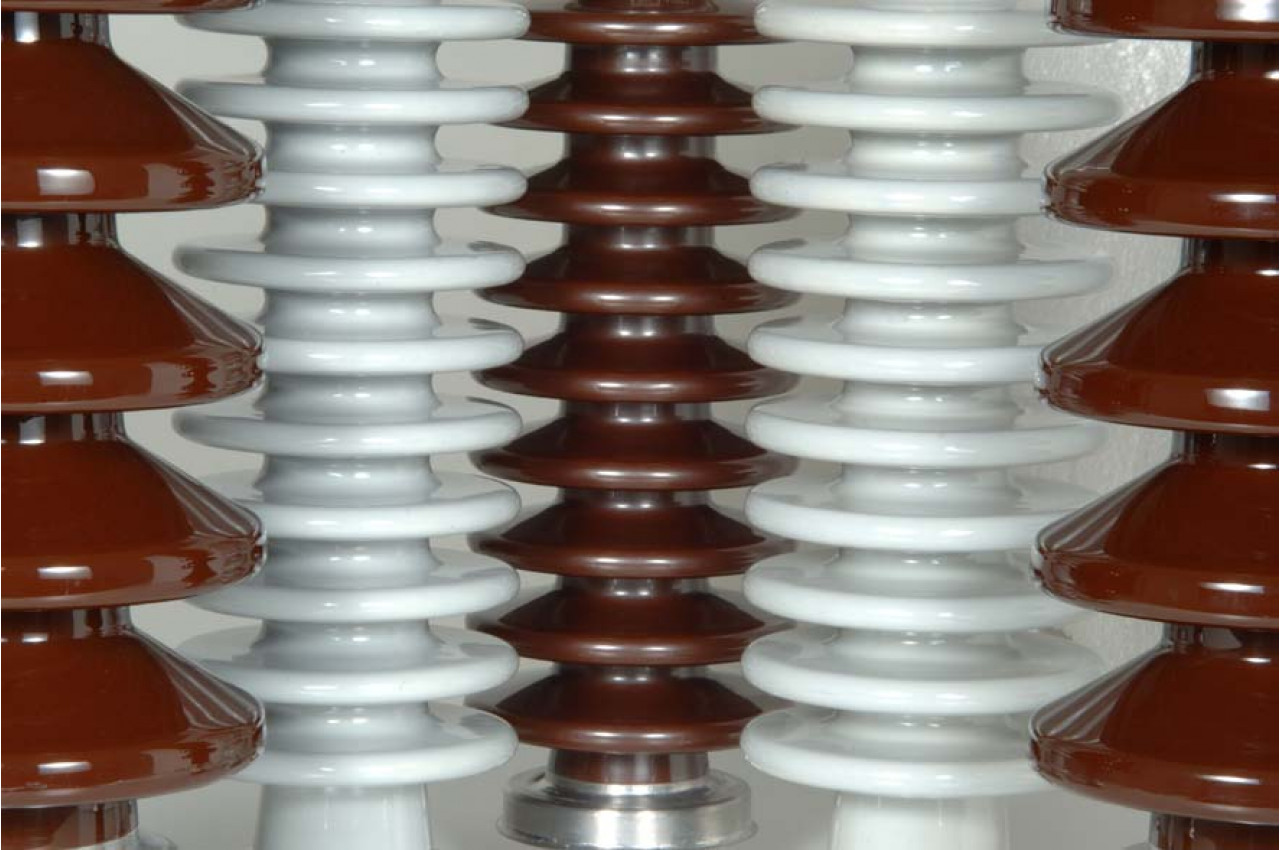

Brown colour (grey on request)

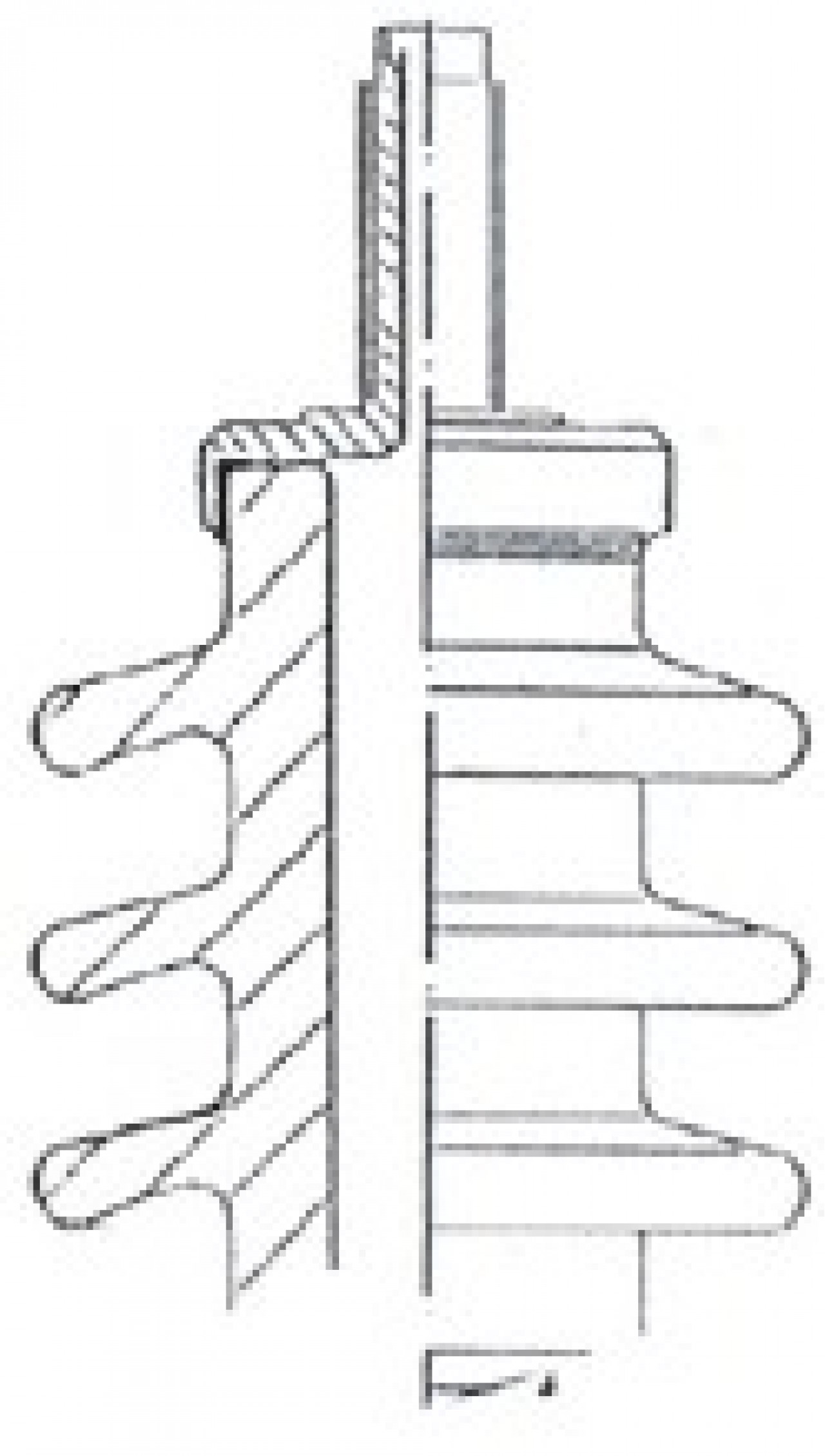

S-TYPES
ELECTRICAL/DIMENSIONAL RATINGS

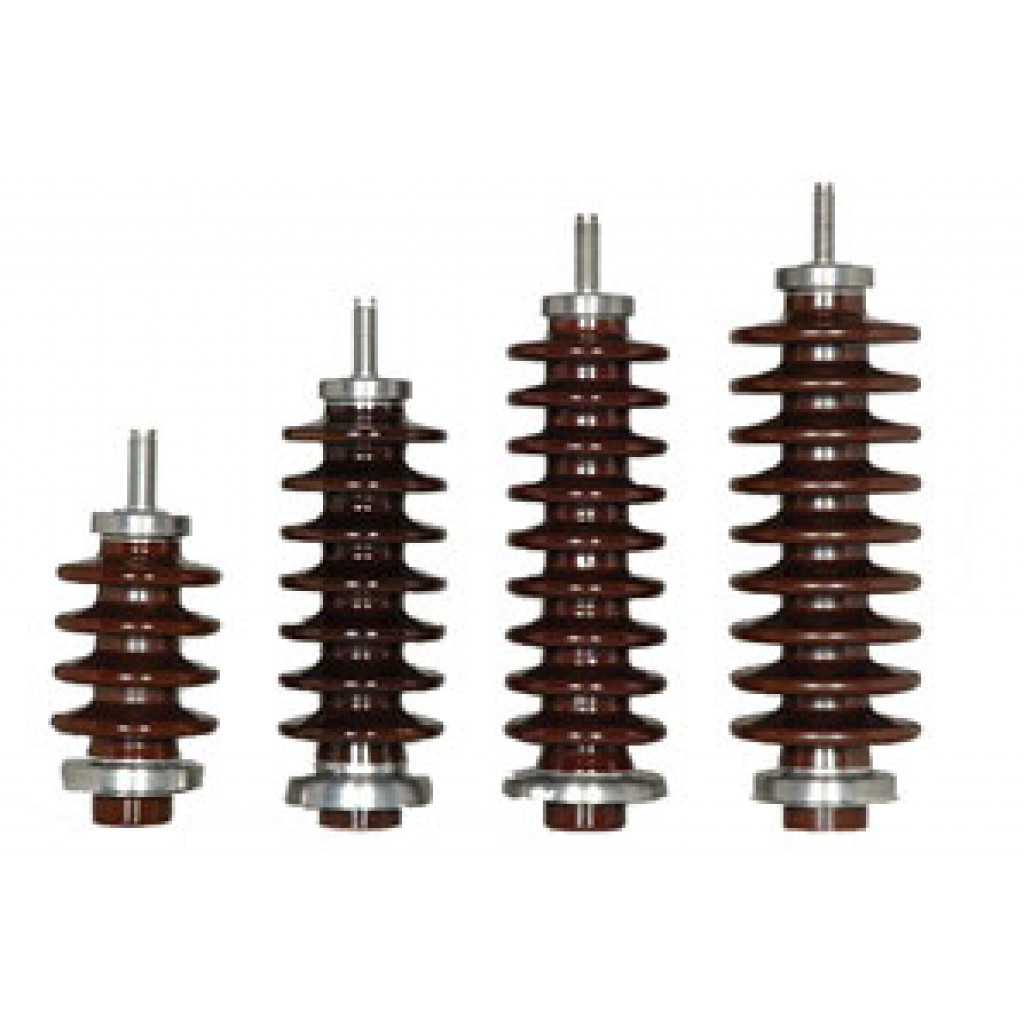

Zamber type Impulse Voltage (kVBIL) Power frequency withstand voltage wet-outdoor (kV) Power frequency withstand voltage dry-indoor (kV) Rated Voltage (kV) Creepage distance (mm) Min. arc distance (mm) Total height out of the lid (mm) Colour n. of skirts Bore dia. (mm) Diameter of the skirts
S1 75 28 38 12 246 122 174 brown 4 17 84
S2 95 38 70 17,5 425 195 245 brown 7 17 84
S3 125 50 80 24 505 240 292 brown 9 17 84
S4 150 70  80 24 660 250 299 brown 9 17 92

Available variants and materials:
Flange for soldering in fire tinned brass or steel, diameter from 70 to 85 mm.
Flange for TIG/MIG welding in stainless steel, diameter 89 mm.
Thread in tinned brass from M6 to M16 - including ½’’-13th
Stud with bore several diameters
Solid stud with wire already connected
Wire sections: 5 – 10 – 12 – 16 – 25 mm²

Tests performed:
Leak test at 6 bars on 100%
Visual inspection on 100%
Dimension test on sample quantity
Temperature test at 130°C on sample quantity

Cantilever load test from 500N until 750 N  – Type test
Traction (tensile) load test at 1500N – Type test
Torque test at 45Nm – Type test

Note to the Purchaser:

All information provided in this website, including technical specifications and recommendations, is based on the results of tests carried out. However, no guarantee is provided with regard to the fact that information supplied is also entirely accurate and complete. It is in the Purchaser’s interest to verify product compatibility with the use intended. All products sold by Zamber are compliant with Zamber’s in-house standards. Zamber is not liable for any possible after sale damage
